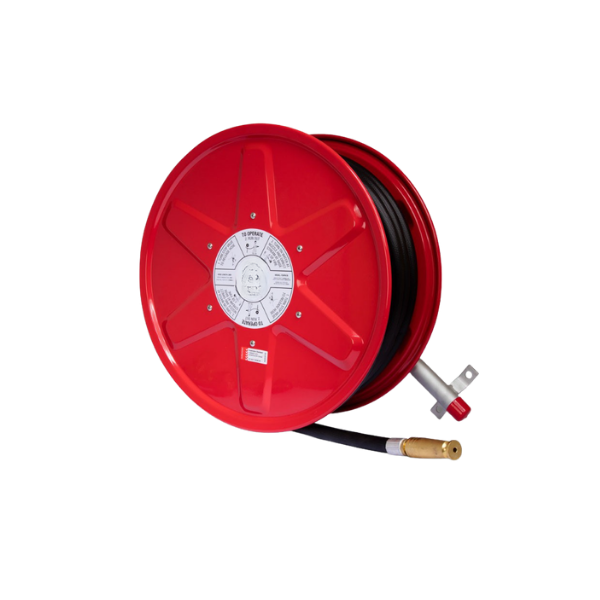

Hose Reel 19mm x 36m Fixed Manual (470mm Dia)

Our fixed Fire Hose Reel comes with all parts required: 25mm ball valve (including nozzle locking device), hose guide, union and wall bracket.

Ease of use and heavy duty parts make this Fire Hose Reel suited to almost any application. Our fixed Fire Hose Reel comes with all parts required: 25mm Ball Valve (including nozzle locking device), Hose Guide and Wall Bracket. Meets or exceeds requirements of Australian Standard AS1221.

• Key Specifications

• Hose Dimensions: 19mm internal diameter × 36m length
• Plate Diameter: 470mm
• Nozzle: Adjustable twist-action brass nozzle (spray to jet)
• Operating Pressure: Minimum inlet pressure of 220kPa (2.2bar)
• Compliance: Certified to AS/NZS 1221


  Included Hardware

  Every complete unit comes with the necessary components for standard installation:

  Factory-installed 36m PVC hose

  25mm (1") galvanised steel inlet pipe

  25mm watermarked ball valve with nozzle locking device

  Heavy-duty wall mounting bracket and galvanised hose guide
